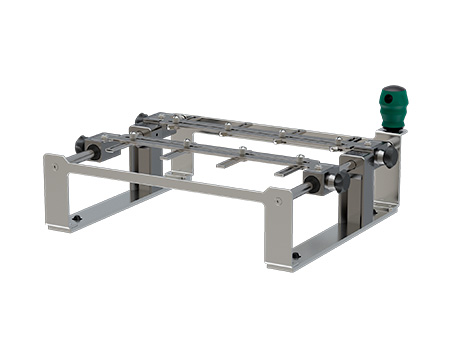

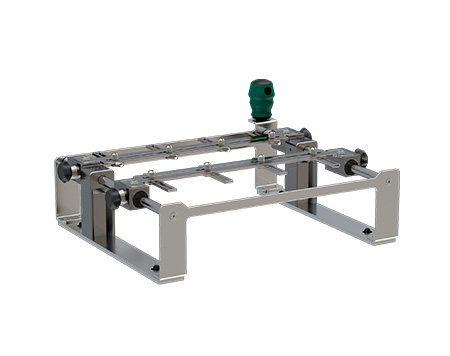

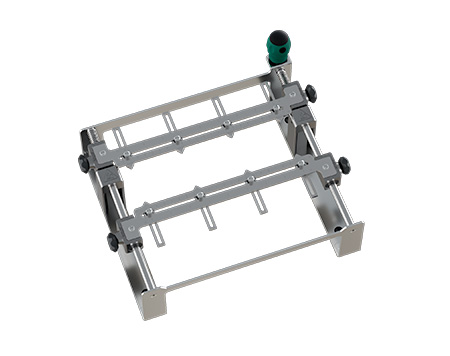

| Model | ST-701 (Application of models: ST-7500) |
| With adjustable parts | Equipped with multiple sets of adjustment parts / front and back can be adjusted |
| Adjust the scale left and right | cm(0-11), in(0-4) |
| Spring thrust | 1.5KG |
| Locking mechanism | Support |
| Support maximum range of PCB board | 220X125mm |
| Application of maximum PCB board | 120X120mm |
| PCB board thickness range | 0.5~4mm |
| Accessories | Screw driver *1PC Grounding wire *1PC |
| Dimensions | 323x275x95mm |
| Weight | 1.93Kg |
| Packaging | Inner Box Packaging: 330x280x120mm / Gross Weight: 2.25Kg Outer Box Packaging: 575x345x385mm (6 units/box) / Gross Weight: 14.5kg |
